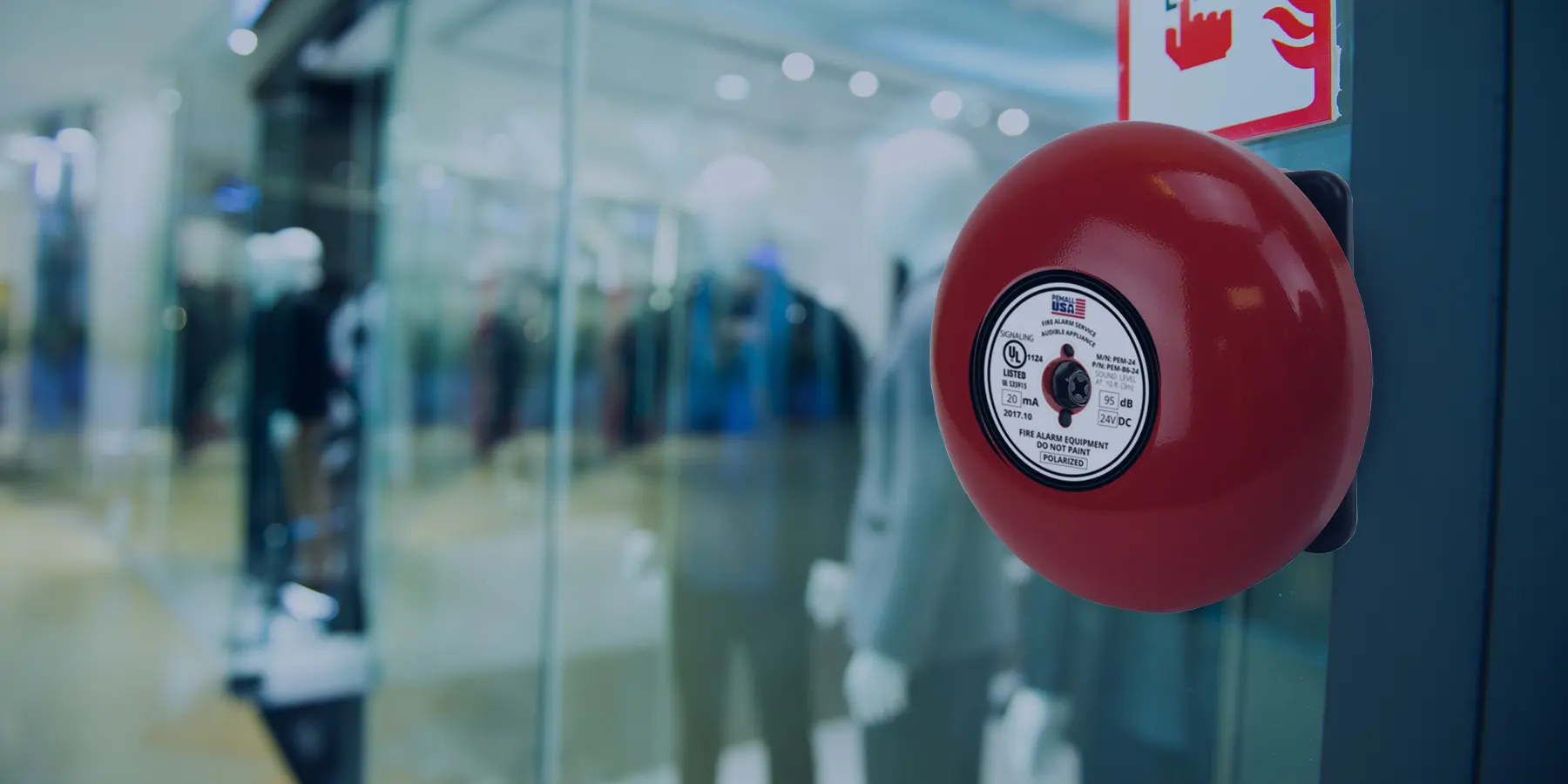

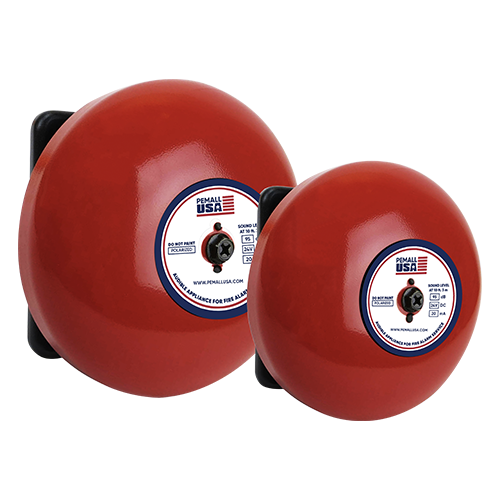

FIRE ALARM BELL

Fire alarm bell has been around since 1852. It’s been saving lives and exasperating building occupants with inconvenient drills. Today fire alarm systems are required in all public buildings, such as schools, offices, hotels, warehouses, libraries and courthouses, for their capacity to educate rapidly a lot of individuals of imposing danger.

FEATURES
18 AWG Wire Leads
ANSI/UL Listed for outdoor use when used with the BB-WP weatherproof back box
UL Listed
Available in 6" or 10" version
Mounts to a standard 4" square electrical box
Meets ANSI/UL 464 requirements
Red metal finish
High dbA output

APPROVALS

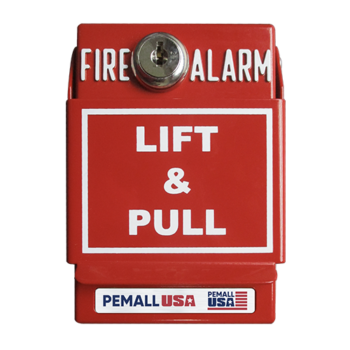

MANUAL PULL STATION

Pemall’s Weatherproof Manual Pull Station is a UL Listed fire alarm manual initiating device. It is suitable for applications requiring outdoor mounting where it may be subject to wet conditions. The product is pre-painted and have plated surface to avoid corrosion. It is a high quality pull station made out of non toxic materials with rounded edges to fit most design requirements. Pemall’s Weatherproof Manual Pull Station have a lot variety of features, which makes it ideal for factories, flour mills, oil refineries, mines, data centers and many other applications both for indoor and/or outdoor.

FEATURES

Corrosion-resistant construction
Rugged die-cast aluminum housing and backbox
10A, 120 VAC Contacts
Lift and Latching pull-down lever
Screw terminal connections
Key Reset
Neoprene Sealing Gasket
Enclosed Switch with Glass Rod (Included)

APPROVALS

OUTDOOR EVACUATION SIGNAL

The Outdoor Evacuation Signal shall produce a peak sound output of 100dBA or greater at as measured in an anechoic chamber and shall also have the capability to silence the audible signal while leaving the visible signal energized with the use of a single pair of power wires.

FEATURES

Nominal voltage 24 VDC
Fixed 75 candela
Prewire entire system, install mounting bracket, then install signals
Input terminals accept 12 to 18 AWG
Horn/strobe switch selection for high or low dBA
Horn/strobe switch for 2400 Hz, mechanical, chime and whoop tones
Silence audible while visual appliance will remain flashing
Tamperproof re-entrant grill and locking screw (optional use)
Wall mount

APPROVALS

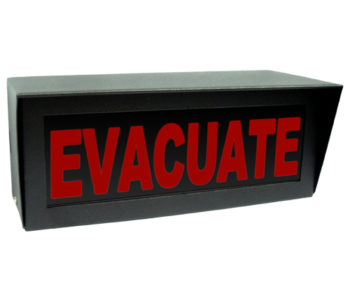

EVACUATE STROBE LIGHT BOX

The Evacuate Strobe Light Box is used as the primary caution or warning before the release of the fire suppression system. The strobe light box is made of electrogalvanized steel sheet and is epoxy powder covered.

FEATURES

Dimension: 265mm(L) x 105mm(W) x 110mm(H)
Durable - Tough industrial design constructed with mild steel
Luminary: Ultra Bright LED
Easy visible access from side and rear
Injection-molded, VO flame retardant, high impact housing
Charge rate / power on LED indicator light
Long life, energy saving LED lamps
Listed for damp location
Surface Wall Mount
Universal mounting canopy for top or side installation

APPROVALS

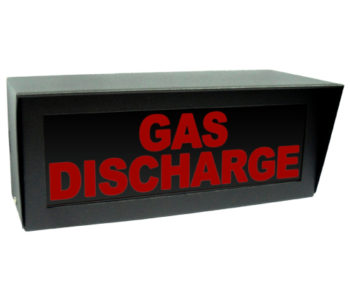

GAS DISCHARGED STROBE LIGHT BOX

The Gas Discharged Strobe Light Box is utilized as the second caution. It releases a signal that means a fire extinguishing system is in operation. The strobe light box is made of electro galvanized steel sheet and is epoxy powder covered.

FEATURES

Dimension: 265mm(L) x 105mm(W) x 110mm(H)
Led Energy savings
Damp location rated
Universal canopy included
Spec grade cast aluminum
Universal knock-out chevrons
Push-to-test switch
Charge rate / power on LED indicator light
Durable black powder coated finish
Fixture is single or double sided

APPROVALS
